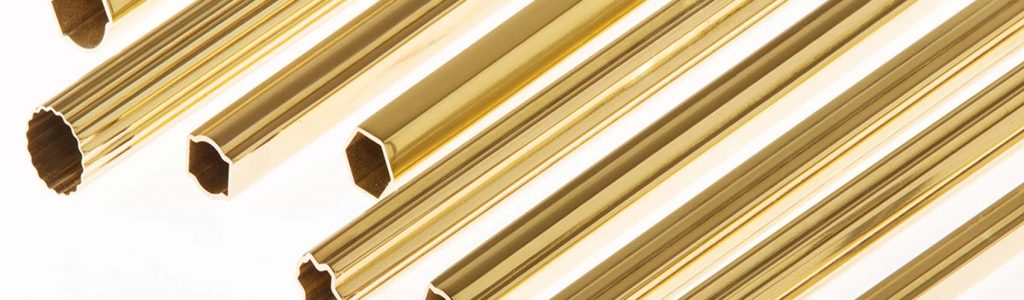

brass tubes

PRODUCTION RANGE

Alloys: CW508L, CW511L

Temper: Hard, half-hard, light annealed and annealed. Tubes are delivered stress relieved upon customer’s request.

Packaging: In random-cut straight lengths approx. 4 m or tailored to customer’s specifications. Brass seamless tubes are packed in wooden cases from 200 kg to 500 kg.

Applications: Components production, bath accessories, architectural, interior design, modern art, furnishing and lamps, pumps, redraw tubes, plumbing, heat exchangers, vehicles, musical instruments

DIAMinimum Thickness (mm)AFProcess
15-303,016-30Drawn (min. I.D. 8mm.)
31-403,531-40Drawn (min. I.D. 8mm.)
41-484,041-50Drawn (min. I.D. 8mm.)
49-605,0N/ADrawn (min. I.D. 8mm.)
>7015,0N/AExtruded (max.I.D. 58mm
Thickness (mm)0.40-0,440,45-0,490,50-0,540,55-0,590,60-0,640,65-0,740,75-0,840,85-0,940,95-1,201,21-1,501,51-2,002,01-2,252,26-2,402,41-3,003,01-3,503,51-4,004,01-4,504,51-5,00
Diameter (mm)5,70-32,004,75-40,004,75-50,004,75-55,004,75-57,154,75-60,004,75-80,004,75-80,004,75-80,006,00-95,008,00-95,0010,00-95,0015,00-95,0020,00-95,0027,00-95,0030,00-95,0035,00-95,0040,00-95,00

MECHANICAL PROPERTIES

AlloyTemperTensile StrengthYield StrengthElongation (min)Hardness
CuZn0,5R220220 – 260140 min33
H04040 – 65
R240240 – 300180 min8
Η06565 – 95
R290290 – 360250 min
H085
R360360 min320 min
H110110 min
CuZn10R240240 – 290140 min36
H050
R280280 – 360200 min13
H08080 -110
R350350 min290 min4
Η110110 min
CuZn15R260260 – 310170 max36
Η05555 – 85
R300300 – 370150 min16
H08585 – 115
R350350 – 420250 min4
H105105 – 135
R410410 min360 min
Η125125 min
CuZn28 (2.0261)

(according to DIN)
F27270 – 350160 max45
H5555 – 90
F35350 – 420200 min30
H9090 – 125
F42420 – 520340 min12
H125125 – 160
F52520 min470 min5
H160160 min
CuZn30R270270 – 350160 min40
Η05555-90
R350350 – 430170 min21
Η09595 – 125
R410410 -490260 min9
H120120 -155
R480480 min430 min
H150150 min
CuZn33R280280 – 380170 max40
Η05555 -95
R350350 – 440170 min19
H09595 – 125
R420420 – 500300 min6
H125125 – 155
R500500 min450 min
H155
CuZn36 & CuZn37R300300 – 370180 max38
H05555 – 95
R350350 – 440170 min19
H09595 – 125
R410410 – 490300 min8
Η120120 -155
R480480 – 560430 min3
Η150150 -180
R550550 min500 min
Η170170 min
CuZn40R340340 – 420240 max33
H08585 -115
R400400 – 480200 min15
H110110 -140
R470> 470390 min6
H140140 min

Other high-performance and coinage alloys: according to international or customer specification.
